In the high-stakes environment of Hawaiian coastal design, a door that makes a massive architectural statement is a liability if it can't withstand 160 mph wind loads and relentless salt spray. Integrating Euro-Wall pivot doors Hawaii projects demand requires balancing grand-scale aesthetics with the strict safety standards of the 2018 International Building Code. You know that a 14-foot tall entrance must do more than look impressive; it has to maintain structural integrity under extreme pressure while resisting the corrosive effects of a marine atmosphere.

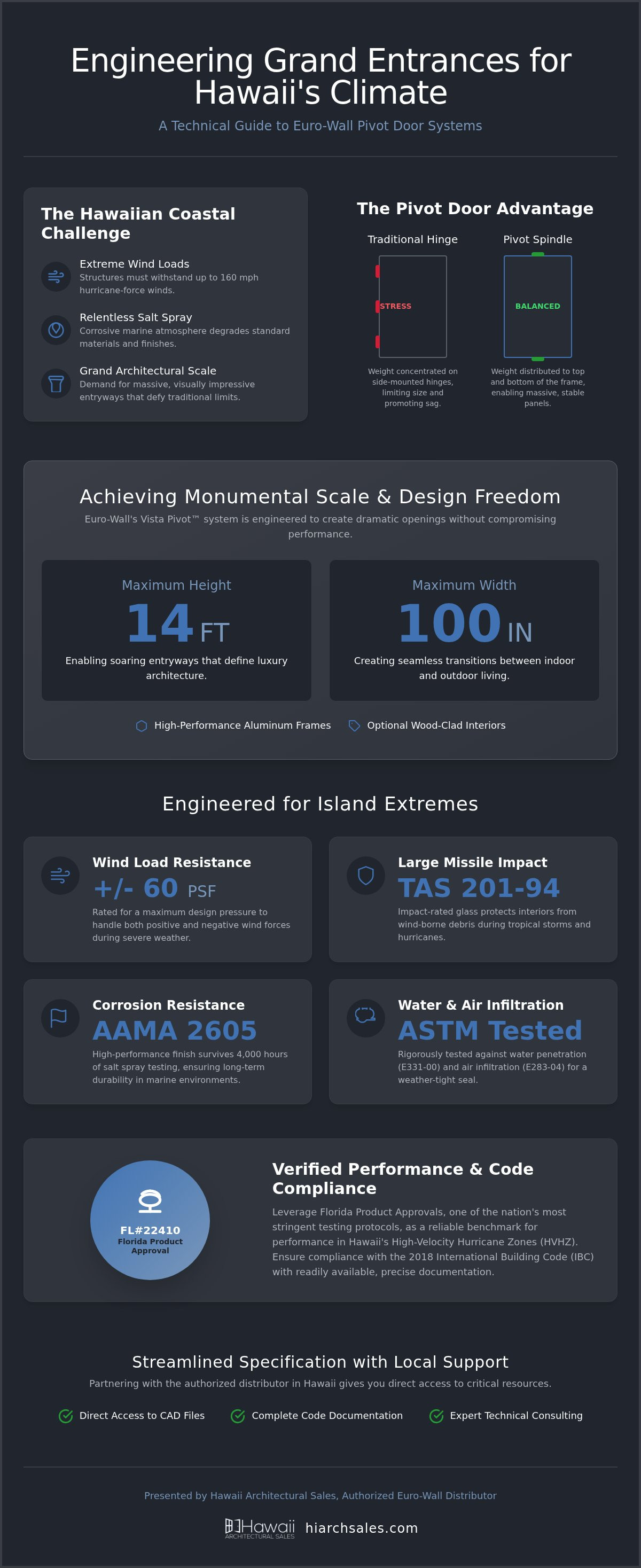

This technical guide demonstrates how these pivot door systems bridge the gap between ambitious scale and the rigorous engineering required for our unique climate. You'll discover how these impact-rated systems utilize AAMA 2605 high-performance finishes to survive 4,000 hours of salt spray testing without compromising on design. We will detail the specific design pressures, missile impact ratings, and technical support available through Hawaii Architectural Sales to ensure your next project is both secure and sophisticated.
• Understand how Euro-Wall pivot doors Hawaii achieve massive 14-foot scales through spindle-based rotation rather than traditional side-mounted hinges.
• Learn how to navigate local building codes by leveraging Florida Product Approvals and HVHZ-rated engineering for high-wind coastal projects.
• Identify the specific material specifications, such as AAMA 2605 coatings, required to withstand Hawaii’s intense salt-air corrosion and UV exposure.
• Explore the design flexibility of aluminum and wood-clad frames to meet the high-performance aesthetic demands of modern tropical architecture.
• Streamline the specification process with direct access to CAD files, code documentation, and technical consulting through localized distributor support.
The architectural landscape in Hawaii is undergoing a significant transformation. High-end residences in Honolulu and Kihei are increasingly prioritizing massive entryways that serve as both a security barrier and a visual centerpiece. Unlike traditional Modern Door Systems that rely on side-mounted hinges, a pivot door operates on a concealed spindle located at the top and bottom of the frame. This engineering shift allows the door to rotate on a vertical axis, distributing weight more efficiently and enabling dimensions that were previously impossible for standard residential hardware.
Architects are moving away from standard bifold or sliding systems for main entries in favor of the "statement entrance." A pivot system supports significantly heavier glass and wider frames. While a traditional hinge might sag under the weight of oversized panels, the pivot mechanism remains stable. This stability is essential for the 100-inch widths common in modern Pacific designs. It's a functional advantage that translates directly into a more reliable, long-term solution for luxury properties.
Open-concept tropical architecture relies on the seamless integration of environments. A pivot door maximizes Pacific views by reducing the number of vertical stiles required for a large opening. When open, the door creates a dramatic focal point that invites the coastal breeze into the home. There is a distinct psychological impact to a grand, oversized entry. It signals a transition into a space designed for luxury and comfort, setting the tone for the entire residence. By utilizing minimal frame interference, these doors ensure the landscape remains the primary focus.
Specifying Euro-Wall pivot doors Hawaii professionals choose often leads back to the Vista Pivot™ system. This specific line is engineered for extreme scale, reaching heights up to 14 feet. Euro-Wall utilizes high-performance aluminum and specialized hardware to ensure that even a door of this magnitude operates with a simple push. The customization options are extensive. Architects can select from various finishes to match the aesthetic requirements of diverse island styles. Hawaii Architectural Sales provides the technical support needed to integrate these systems, offering direct access to CAD files and cut sheets that simplify the specification process for complex building envelopes.
Hawaii’s environmental conditions demand more than just aesthetic appeal. For projects in high-wind zones like Lahaina or exposed coastal cliffs, the building envelope must withstand extreme atmospheric forces. Euro-Wall pivot doors Hawaii architects specify are engineered to meet these rigorous standards. The structural integrity of a 14-foot door is tested by its ability to handle both positive and negative wind pressures without failure. This balance is critical for maintaining the safety of the structure during severe weather events.
Florida Product Approval (FL#22410) serves as a vital benchmark for Hawaii building officials. Because Florida's testing protocols for hurricane zones are among the most stringent in the nation, these certifications provide a reliable proxy for performance in the Pacific. The Vista Pivot™ system is rated for a maximum design pressure of +/- 60 psf. This rating ensures the door remains secure whether the wind is pushing against the entrance or creating a suction effect that pulls the panel outward. Impact-rated glass, tested under TAS 201-94 for large missile impact, further protects luxury interiors from wind-borne debris during tropical storms.
The engineering behind these systems extends to moisture management and energy efficiency. Euro-Wall systems undergo rigorous testing for air infiltration (ASTM E283-04) and water penetration (ASTM E331-00). These standards are essential for managing Hawaii’s heavy seasonal rains and high humidity. Thermal performance is equally important. Managing solar heat gain through specialized glass coatings helps maintain interior temperatures under the year-round sun. If you need help determining the specific load requirements for your site, you can consult with our architectural sales team for precise technical data.
Navigating the 2018 International Building Code (IBC) with Hawaii-specific amendments requires precise documentation for all glazed openings. Compliance involves more than just wind resistance; it requires the use of tempered and laminated glass to prevent injury and maintain the building's seal. Pivot doors in these environments must also account for cyclic wind pressure loading (TAS 203-94), which simulates the repeated gusts of a sustained storm. HVHZ compliance is a mandatory certification indicating that a product has passed the rigorous testing required for structures located within High Velocity Hurricane Zones where wind speeds can reach extreme levels.
The technical advantage of specifying Euro-Wall pivot doors Hawaii projects require lies in the ability to push dimensional boundaries without sacrificing operational ease. While standard doors often face height restrictions due to hinge fatigue, the Euro-Wall Vista Pivot™ system supports panels up to 14 feet tall and 100 inches wide. This scale is achieved through a heavy-duty pivot spindle that transfers the door's weight directly to the floor. It's a design shift that allows architects to create expansive, unobstructed openings that match the verticality of modern Pacific estates.
Material selection plays a critical role in both the longevity and the visual impact of the entrance. Aluminum frames are the standard for their high strength-to-weight ratio and slim profiles. For projects requiring a warmer interior aesthetic, wood-clad options provide the organic feel of timber while maintaining the structural benefits of an aluminum core. Threshold design is equally vital. Flush tracks are available to ensure a seamless transition between interior flooring and exterior lanais. These low-profile sills are essential for meeting ADA compliance in commercial settings or creating a trip-free environment in residential designs. Security isn't compromised for the sake of scale; integrated multi-point locking systems provide robust protection by securing the door at several points along the frame.
Durability in a tropical environment depends on the quality of the exterior coating. Euro-Wall offers powder coat and Kynar® finishes that meet the AAMA 2605 high-performance specification. This standard is the highest in the industry, requiring the finish to withstand 4,000 hours of salt spray testing. For a natural appearance without the maintenance of real wood, wood grain aluminum finishes offer a resilient alternative. Architectural hardware selections range from minimalist, recessed pulls to large-scale statement handles in stainless steel, allowing the entrance to be fully tailored to the building’s character.
Integrating a 14-foot pivot door requires early coordination with structural engineers. Unlike traditional doors that hang from the side jamb, a pivot door places the majority of its load on the bottom spindle. However, the header must still be engineered to handle the massive span without deflection. Even minor settling or header sag can interfere with the tight tolerances of a pivot system, potentially leading to air leaks or mechanical binding. Hawaii Architectural Sales acts as a technical consultant during this phase, providing the necessary specifications to ensure the surrounding structure is compatible with these high-performance systems.
Hawaii’s microclimates present a severe challenge to architectural hardware. In coastal regions like Lihue and Kailua-Kona, the combination of high humidity and airborne salinity creates a highly corrosive atmosphere that often causes standard residential hardware to fail within months. Specifying Euro-Wall pivot doors Hawaii projects require means selecting materials that can withstand these conditions without losing structural or aesthetic integrity. Euro-Wall utilizes 6063-T5 extruded aluminum and 316-grade stainless steel for critical components, providing a level of resistance to pitting and oxidation that standard alloys cannot match.
The choice between anodized finishes and Kynar coatings is a pivotal technical decision for coastal properties. While anodizing provides a hard, durable surface, Kynar (PVDF) coatings meeting the AAMA 2605 specification offer superior protection in high-UV and high-salt environments. These coatings are required to pass 4,000 hours of salt spray testing, ensuring they maintain color and gloss even when exposed to the relentless Pacific sun and spray. Regular maintenance protocols, such as rinsing the tracks and frames with fresh water, are still essential to prevent mineral buildup, but the underlying material quality ensures the system's longevity.
The glass itself is vulnerable to the Hawaiian environment. Salt etching and mineral deposits can permanently damage the glazing surface if it isn't properly protected. High-performance spacers and secondary sealants are critical for maintaining the hermetic seal of the glass units, preventing the fogging that occurs when salt air penetrates the cavity. You can learn more about these specialized requirements in our guide on Corrosion Resistance: Salt-Air Glazing Solutions. These components work together to ensure the entire building envelope remains secure and clear for the life of the structure.
Selecting premium door systems is a strategic investment in the property’s lifecycle. By utilizing thermally broken frames and Low-E glass, these systems significantly reduce solar heat gain, which lowers long-term utility costs for climate-controlled interiors. Investing in premium, salt-resistant finishes at the outset eliminates the need for expensive structural replacements that often occur within five years when using standard-grade residential hardware. If you are designing for a high-exposure site, request a technical consultation to review the best finish options for your specific island location.
Successful integration of Euro-Wall pivot doors Hawaii projects require goes beyond simple procurement. Hawaii Architectural Sales serves as a technical consultant for the architectural and engineering community. We provide direct access to the specialized documentation necessary for high-performance building envelopes. This includes CAD files, cut sheets, and the specific code compliance data required by county building departments. By engaging with us during the early design phase, architects can ensure that structural considerations like header deflection and pivot point placement are fully resolved before construction begins.
We manage the complex logistics of transporting oversized architectural systems to the islands. Shipping a 14-foot pivot door requires specialized handling to maintain the precision of the hardware and the finish. Our team coordinates these shipments to align with your project schedule, reducing the risk of on-site delays. This level of oversight is essential for maintaining the integrity of the building envelope while meeting the high standards of luxury residential and commercial construction.
Our team provides on-island expertise for projects in Honolulu, Lihue, Kailua-Kona, Kihei, and Lahaina. We act as the vital link between the manufacturer's engineering department and the local contractor's implementation team. This localized knowledge ensures that the specific environmental challenges of each site, from salt spray to wind load, are addressed with the correct product specification. You can learn more about our specialized role by reading about Euro-Wall Distributor Hawaii: Authorized Technical Representation for 2026. We're here to ensure the technical intent of your design is realized in the final build.
The process for specifying Euro-Wall pivot doors Hawaii begins with a thorough technical review of your architectural plans. We analyze the design pressure requirements and material specifications to ensure the product meets or exceeds the 2018 IBC standards with Hawaii amendments. Our team provides clear guidance on lead times and customization options for 2026, allowing for better project planning and budget management. This consultative approach minimizes the risk of last-minute changes or compliance issues during the permitting phase. Consult with our technical team on your Euro-Wall pivot door project today.
Designing for the Hawaiian coast requires a balance of aesthetic ambition and structural resilience. We've detailed how Euro-Wall pivot doors Hawaii projects demand utilize advanced pivot mechanics to support massive 14-foot scales that traditional hinges cannot accommodate. These systems are engineered to meet rigorous hurricane-rated impact requirements while utilizing AAMA 2605 finishes to resist the relentless salt-air corrosion found in Lihue and Lahaina. Success in these high-stakes environments depends on selecting components that offer long-term durability without sacrificing modern design.
As an authorized Euro-Wall representative, Hawaii Architectural Sales serves as a dedicated partner for the professional sector. We are specialists in Hawaii building codes, offering the technical support architects and engineers need to ensure every specification is precise and compliant. Our team manages the complex logistics of island distribution, ensuring your project moves from the drawing board to completion without compromise. Request a Technical Consultation for Euro-Wall Systems today to secure a high-performance entrance solution for your next project. We're ready to support your vision with localized expertise and world-class engineering.
Yes, Euro-Wall pivot doors Hawaii architects specify are impact-rated and carry Florida Product Approval (FL#22410). These systems have undergone rigorous testing for large missile impact under TAS 201-94 and cyclic wind pressure loading under TAS 203-94. This ensures they meet the stringent requirements for the Hawaii building envelope, providing safety and structural integrity during hurricane-force wind events.
The Euro-Wall Vista Pivot™ system can be manufactured to a maximum height of 14 feet and a maximum width of 100 inches. This massive scale is possible because the door rotates on a high-performance spindle that transfers the weight directly to the floor. Traditional side-mounted hinges can't support these dimensions without sagging or mechanical failure over time.
Euro-Wall systems are tested for water penetration under ASTM E331-00 and air infiltration under ASTM E283-04. The doors utilize high-performance gaskets and specialized threshold designs to manage moisture during tropical storms. For projects in highly exposed coastal areas, specifying a water-rated sill is essential to ensure moisture is effectively directed away from the interior space.
You can specify wood-clad aluminum frames or wood grain powder coat finishes to achieve a warm aesthetic. For coastal environments, the wood grain aluminum finish is recommended because it meets AAMA 2605 specifications. This high-performance coating withstands 4,000 hours of salt spray testing, providing the look of natural timber without the risk of rot or warping in the Pacific climate.
Yes, these pivot systems are designed to meet ADA requirements when configured with a flush threshold. This low-profile track creates a trip-free, seamless transition between interior flooring and exterior lanais. It's an ideal solution for commercial developments and luxury residential projects that prioritize both accessibility and a modern, unobstructed floor plan.
Impact-rated pivot doors are engineered with laminated glass and reinforced frames to survive wind-borne debris and extreme pressure cycles. Non-impact doors lack these specific reinforcements and are generally reserved for sheltered areas where hurricane-force winds aren't a concern. In most Hawaii coastal zones, impact-rated systems are a code necessity to prevent building envelope failure during severe weather.
You can coordinate a technical review or sample viewing through Hawaii Architectural Sales. As the authorized distributor, we provide on-island expertise for projects in Honolulu, Lihue, and Lahaina. We act as a technical consultant for architects and engineers, providing the CAD files and physical samples needed to finalize complex project specifications.
A pivot door rotates on a vertical axis that is offset from the frame, meaning the door panel swings both inward and outward at the same time. This differs from a traditional swinging door that is hinged at the side and only moves in one direction. While a pivot door requires clear floor space on both sides of the spindle, it enables much wider openings and a more balanced weight distribution.
